Ovation's i-Conex is a new cabling system developed by Ovation Systems specially designed to make the installation and wiring of Ovation's range of digital video recorders and video surveillance products simple and effective.
Ovation's i-Conex is a new cabling system developed by Ovation Systems specially designed to make the installation and wiring of Ovation's range of digital video recorders and video surveillance products simple and effective.
The heart of the system is a miniature 4 pin watertight screw-locking connector with a range of cable assemblies which interface many commonly used video, audio and power connectors. One of the huge advantages of the i-Conex system is that any cable can be easily extended by a simple to install in-line extension. This allows the cables to be easily tailored for each and every installation, on-site, without need to use a soldering iron, wire cutters etc.
There is even a range of i-Conex, compatible peripherals including microphones, bullet cameras and GPS receivers.
FlashBack-3C Single & Dual DVR video streamer

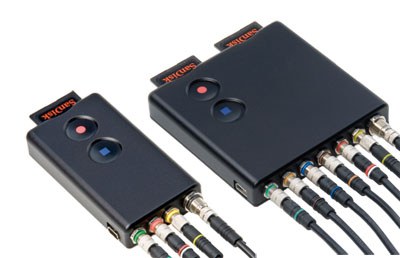

Example of i-Conex cable assemblies fitted to Ovation's FlashBack-3C Dual and Single digital video recorder
| Product Codes | Description | |
| IC1C-5642 | Power Cable to in-line 2.1mm DC Jack Socket | |
| IC1C-5645 | Power/Control cable to open ends |
| Product Codes | Description | |
| IC1C-5646 | 4 way control cable to open ends | |

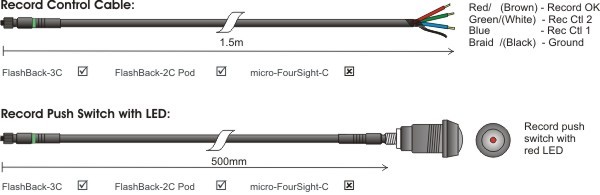

| IC1A-5647 | Record push switch with LED |
The Y Splitter adaptor allows multiple functions to be split out of a single connector. E.g. two audio channels, two video channels or multiple control sensor/switches, from the one input connector
| Product Codes | Description | |
| IC1C-5650 | Extension cable (0.5M long) | |
| IC1C-5651 | Extension cable (1.0M long) | |
| IC1C-5652 | Extension cable (5M long) | |
| IC1C-5653 | Splitter cable |
| Product Codes | Description | |
| IC1C-5654 | Video input cable | |
| IC1C-5655 | Video in & camera power cable | |
| IC1C-5656 | Video and audio monitor out cable | |
| IC1C-5657 | Audio input cable pair |
| Product Codes | Description | |
| IC1C-5648 | Ethernet interface cable to RJ45 socket | |
| IC1C-5649 | RS232 interface cable to DB9 socket | |
| Product Codes | Description | |
| IC1A-5659 | Low-light colour bullet camera (PAL) | |
| IC1A-5661 | Low-light colour bullet camera (NTSC) | |
| IC1A-5662 | Low-light colour square camera (PAL) | |
| IC1A-5663 | Low-light colour square camera (NTSC) | |
| IC1A-5664 | Knowles micrphone pair | |
| IC1A-5665 | Knowles microphone right (red) | |
| IC1A-5666 | Knowles microphone left (white) | |
| IC1A-5667 | GPS receiver |
Connector functions & pin-outs used on the units
